Diodes Incorporated 集成電路（IC） ZXCL300E5TA

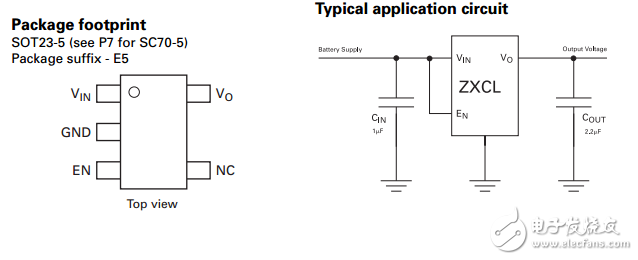

　　The ZXCL series have been designed with space sensitive systems in mind. They are available in the ultra small SC70-5 package， which is half the size of SOT23 based regulators. The devices can be used with all types of output capacitors including low ESR ceramics and typical dropout voltage， is only 85mV at 50mA load. Supply current is minimised with a ground pin current of only 50A at full 150mA load. Logic control allows the devices to be shut down， consuming typically less than 10nA. These features make the device ideal for battery powered applications where power economy is critical. For applications requiring improved performance over alternative devices， the ZXCL is also offered in the 5 pin SOT23 package with an industry standard pinout. The devices feature thermal overload and over-current protection and are available with output voltages of 2.5V， 2.6V， 2.8V， 3V， 3.3V.
