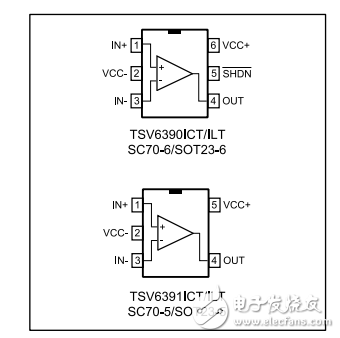

Description The TSV6390， TSV6391， and their “A” versions are single operational amplifiers （op amps） offering low voltage， low power operation， and rail-to-rail input and output. With a very low input bias current and low offset voltage （500 μV maximum for the A version）， the TSV6390 and TSV6391 are ideal for applications requiring precision. The devices can operate at power supplies ranging from 1.5 to 5.5 V， and are therefore ideal for battery-powered devices， extending battery life. When used with a gain （above -3 or 4）， these products feature an excellent speed/power consumption ratio， offering a 2.4 MHz gain bandwidth product while consuming only 60 μA at a 5 V supply voltage. The TSV6390 comes with a shutdown function. Both the TSV6390 and TSV6391 have a high tolerance to ESD， sustaining 4 kV for the human body model. They are offered in micropackages， SC70-6 and SOT23-6 for the TSV6390 and SC70-5 and SOT23-5 for the TSV6391. They are guaranteed for industrial temperature ranges from -40 °C to 125 °C. All these features combined make the TSV6390 and TSV6391 ideal for sensor interfaces， batterysupplied， and portable applications， as well as active filtering.
