嵌入式Linux性能調優核心戰場，從代碼層面徹底吃透DVFS機制

作為嵌入式Linux開發者，你是否只停留在echo performance > scaling_governor的表層操作？當遇到頻率切換延遲高、電壓調節失敗、多核異構頻率協同等問題時，是否束手無策？

今天這篇文章，將逐行剖析RK3576平臺的cpufreq實現，從源碼層面拆解Linux內核DVFS（動態電壓頻率調節）的每一個細節，帶你從“會用”到“精通”，解決實際開發中的核心痛點。

一、為什么要深入cpufreq源碼？

嵌入式Linux開發中，cpufreq是性能與功耗平衡的核心，但這些問題往往讓開發者卡殼：

?頻率切換延遲過高，如何優化？

?電壓調節失敗，如何定位？

?多核異構場景下，頻率如何協同？

?自定義調速器，如何接入框架？

只有深入源碼，才能真正掌握DVFS的底層邏輯，而非停留在“調參數”的表面操作。

二、整體架構：代碼視角的分層設計

2.1文件組織與模塊依賴

cpufreq驅動的代碼分布清晰，核心文件各司其職：

drivers/cpufreq/├── cpufreq.c        # 核心框架：策略管理、通知鏈、sysfs├── cpufreq-dt.c      # DT 通用驅動：OPP 解析、時鐘操作├── cpufreq-dt.h      # DT 驅動接口定義├── rockchip-cpufreq.c   # RK 平臺驅動：SoC 特性、DVFS 鎖、監控├── rockchip-cpufreq.h   # RK 驅動導出接口├── cpufreq_governor.c   # 調速器公共框架├── cpufreq_governor.h   # 調速器數據結構├── cpufreq_interactive.c  # Interactive 調速器實現├── cpufreq_ondemand.c   # Ondemand 調速器實現├── freq_table.c      # 頻率表輔助函數└── cpufreq_stats.c     # 統計信息模塊

2.2核心結構體關系（代碼定義）

cpufreq的核心邏輯圍繞兩個結構體展開，是理解整個框架的關鍵：

// include/linux/cpufreq.hstructcpufreq_policy{ cpumask_var_t     cpus;     // 本策略管理的 CPU 掩碼 cpumask_var_t     related_cpus; // 硬件相關的 CPU（共享時鐘） unsignedint      min;      // 用戶設置的最小頻率 unsignedint      max;      // 用戶設置的最大頻率 unsignedint      cur;      // 當前頻率（kHz） structcpufreq_governor*governor;   // 當前調速器 void          *governor_data;// 調速器私有數據 structcpufreq_frequency_table*freq_table;// 頻率表 structcpufreq_stats  *stats;    // 統計信息 structkobject     kobj;     // sysfs 對象 void          *driver_data; // 驅動私有數據 // ... 更多字段};structcpufreq_driver{ char      name[CPUFREQ_NAME_LEN]; unsignedint  flags;
 /* 必須實現的回調 */ int(*target_index)(structcpufreq_policy *policy,unsignedintindex); unsignedint(*get)(unsignedintcpu);
 /* 可選回調 */ int(*init)(structcpufreq_policy *policy); int(*exit)(structcpufreq_policy *policy); int(*online)(structcpufreq_policy *policy); int(*offline)(structcpufreq_policy *policy); // ...};

腦圖：RK3576 CPUFreq核心架構

三、初始化流程：從模塊加載到頻率就緒

RK3576的cpufreq初始化是“先集群初始化，再注冊驅動”的邏輯，核心分為三步：

3.1驅動入口：rockchip_cpufreq_driver_init

這是整個RK平臺cpufreq的入口函數，核心邏輯是遍歷CPU集群、初始化集群信息、注冊通知鏈和平臺設備：

// drivers/cpufreq/rockchip-cpufreq.cstaticint__initrockchip_cpufreq_driver_init(void){ structcluster_info *cluster, *pos; structcpufreq_dt_platform_data pdata = {0}; intcpu, ret; boolis_opp_shared_cpu_bus =false; /* 遍歷所有可能的 CPU，為每個 cluster 初始化 */  for_each_possible_cpu(cpu) {    cluster = rockchip_cluster_info_lookup(cpu);   if(cluster)     continue; // 已初始化過    cluster = kzalloc(sizeof(*cluster), GFP_KERNEL);   if(!cluster) {      ret = -ENOMEM;     gotorelease_cluster_info;    }   /* 核心初始化：解析 OPP、獲取 regulator、設置 SoC 信息 */    ret = rockchip_cpufreq_cluster_init(cpu, cluster);   if(ret) {      pr_err("Failed to initialize dvfs info cpu%dn", cpu);     gotorelease_cluster_info;    }
    list_add(&cluster->list_head, &cluster_info_list);   if(cluster->is_opp_shared_cpu_bus)      is_opp_shared_cpu_bus =true;  } /* 設置平臺數據 */  pdata.have_governor_per_policy =true;  pdata.suspend = rockchip_cpufreq_suspend; /* 注冊 cpufreq 通知鏈 */  ret = cpufreq_register_notifier(&rockchip_cpufreq_notifier_block,                  CPUFREQ_POLICY_NOTIFIER); if(ret) {    pr_err("failed to register cpufreq notifiern");   gotorelease_cluster_info;  } /* 如果存在 OPP 共享總線，注冊 transition 通知器 */ if(is_opp_shared_cpu_bus) {    ret = cpufreq_register_notifier(&rockchip_cpufreq_transition_notifier_block,                    CPUFREQ_TRANSITION_NOTIFIER);   // ...  } /* 注冊 panic 通知器，用于調試 */  ret = atomic_notifier_chain_register(&panic_notifier_list,                    &rockchip_cpufreq_panic_notifier_block); /* 注冊 platform_device，觸發 cpufreq-dt 驅動 probe */ returnPTR_ERR_OR_ZERO(platform_device_register_data(NULL,"cpufreq-dt",       -1, (void*)&pdata,sizeof(structcpufreq_dt_platform_data)));}module_init(rockchip_cpufreq_driver_init);// drivers/cpufreq/rockchip-cpufreq.cstaticint__initrockchip_cpufreq_driver_init(void){ structcluster_info *cluster, *pos; structcpufreq_dt_platform_data pdata = {0}; intcpu, ret; boolis_opp_shared_cpu_bus =false; /* 遍歷所有可能的 CPU，為每個 cluster 初始化 */  for_each_possible_cpu(cpu) {    cluster = rockchip_cluster_info_lookup(cpu);   if(cluster)     continue; // 已初始化過    cluster = kzalloc(sizeof(*cluster), GFP_KERNEL);   if(!cluster) {      ret = -ENOMEM;     gotorelease_cluster_info;    }   /* 核心初始化：解析 OPP、獲取 regulator、設置 SoC 信息 */    ret = rockchip_cpufreq_cluster_init(cpu, cluster);   if(ret) {      pr_err("Failed to initialize dvfs info cpu%dn", cpu);     gotorelease_cluster_info;    }
    list_add(&cluster->list_head, &cluster_info_list);   if(cluster->is_opp_shared_cpu_bus)      is_opp_shared_cpu_bus =true;  } /* 設置平臺數據 */  pdata.have_governor_per_policy =true;  pdata.suspend = rockchip_cpufreq_suspend; /* 注冊 cpufreq 通知鏈 */  ret = cpufreq_register_notifier(&rockchip_cpufreq_notifier_block,                  CPUFREQ_POLICY_NOTIFIER); if(ret) {    pr_err("failed to register cpufreq notifiern");   gotorelease_cluster_info;  } /* 如果存在 OPP 共享總線，注冊 transition 通知器 */ if(is_opp_shared_cpu_bus) {    ret = cpufreq_register_notifier(&rockchip_cpufreq_transition_notifier_block,                    CPUFREQ_TRANSITION_NOTIFIER);   // ...  } /* 注冊 panic 通知器，用于調試 */  ret = atomic_notifier_chain_register(&panic_notifier_list,                    &rockchip_cpufreq_panic_notifier_block); /* 注冊 platform_device，觸發 cpufreq-dt 驅動 probe */ returnPTR_ERR_OR_ZERO(platform_device_register_data(NULL,"cpufreq-dt",       -1, (void*)&pdata,sizeof(structcpufreq_dt_platform_data)));}module_init(rockchip_cpufreq_driver_init);

3.2 Cluster初始化：rockchip_cpufreq_cluster_init

每個CPU集群（大核/小核）的初始化核心是解析OPP表、獲取電壓調節器、讀取SoC特有信息：

Cstaticintrockchip_cpufreq_cluster_init(intcpu,structcluster_info *cluster){  structrockchip_opp_info*opp_info = &cluster->opp_info;  structdevice_node*np;  structdevice*dev;  char*reg_name;  intret =0;  u32 freq =0;  dev =get_cpu_device(cpu);  if(!dev)    return-ENODEV;  /* 從 CPU 節點獲取 operating-points-v2 phandle */  np =of_parse_phandle(dev->of_node,"operating-points-v2",0);  if(!np) {    dev_warn(dev,"OPP-v2 not supportedn");    return-ENOENT;  }  /* 獲取共享 OPP 的 CPU 掩碼（大核/小核 cluster） */  ret =dev_pm_opp_of_get_sharing_cpus(dev, &cluster->cpus);  if(ret) {    dev_err(dev,"Failed to get sharing cpusn");    of_node_put(np);    returnret;  }  /* 檢查是否共享 DSU/CCI 總線 OPP */ if(of_property_read_bool(np,"rockchip,opp-shared-dsu") ||    of_property_read_bool(np,"rockchip,opp-shared-cci"))    cluster->is_opp_shared_cpu_bus =true;  /* 讀取 CPU 到總線頻率的百分比 */ of_property_read_u32(np,"rockchip,cpu-freq-percent",             &cluster->cpu_freq_percent);  /* 讀取空閑閾值頻率 */ if(!of_property_read_u32(np,"rockchip,idle-threshold-freq", &freq))    cluster->idle_threshold_freq = freq;  of_node_put(np);  /* 確定 regulator 名稱 */ if(of_find_property(dev->of_node,"cpu-supply",NULL))    reg_name ="cpu";  elseif(of_find_property(dev->of_node,"cpu0-supply",NULL))    reg_name ="cpu0";  else   return-ENOENT;  /* 獲取 SoC 特定的 OPP 數據處理函數 */ rockchip_get_opp_data(rockchip_cpufreq_of_match, opp_info);  /* 初始化 OPP 信息：讀取 nvmem、設置 supported_hw */  ret =rockchip_init_opp_info(dev, opp_info,NULL, reg_name);  if(ret)    dev_err(dev,"failed to init opp infon");  returnret;}

3.3 RK3576特有的SoC信息讀取

RK3576不同版本（M/J/S）的頻率/電壓支持不同，核心是從nvmem讀取芯片規格：

staticintrk3576_cpu_get_soc_info(structdevice *dev,structdevice_node *np,                 int*bin,int*process){ intret =0;  u8 spec =0, test_version =0; if(!bin)   return0; /* 從 nvmem 讀取芯片規格序列號 */ if(of_property_match_string(np,"nvmem-cell-names",                "specification_serial_number") >=0) {    ret = rockchip_nvmem_cell_read_u8(np,                    "specification_serial_number",                     &spec);   if(ret) {      dev_err(dev,"Failed to get specification_serial_numbern");     returnret;    }  } /* 讀取測試版本 */ if(of_property_match_string(np,"nvmem-cell-names","test_version") >=0) {    ret = rockchip_nvmem_cell_read_u8(np,"test_version", &test_version);   if(ret) {      dev_err(dev,"Failed to get test_versionn");     returnret;    }  } /* 根據 spec 值判斷芯片型號 */ if(spec ==0xd) {    *bin =1; /* RK3576M */  }elseif(spec ==0xa) {    *bin =2; /* RK3576J */  }elseif(spec ==0x13) {   if(test_version ==0) {      *bin =3; /* RK3576S */    }else{      *bin =0;      dev_info(dev,"bin=%d (3)n", *bin);     return0;    }  } if(*bin 0)    *bin =0;  dev_info(dev,"bin=%dn", *bin); returnret;}

流程圖：RK3576 CPUFreq初始化流程

st=>start: 模塊加載(rockchip_cpufreq_driver_init)op1=>operation: 遍歷所有CPUop2=>operation: 查找/創建cluster_infoop3=>operation: rockchip_cpufreq_cluster_initop4=>operation: 解析OPP-v2節點op5=>operation: 獲取共享CPU掩碼/總線信息op6=>operation: 讀取SoC信息op7=>operation: 注冊策略/轉換通知鏈op8=>operation: 注冊cpufreq-dt平臺設備e=>end: 觸發cpufreq-dt probe，初始化完成st->op1->op2->op3->op4->op5->op6->op7->op8->e

四、頻率調整核心：從Governor到硬件

頻率調整是cpufreq的核心流程，完整鏈路是：調速器決策→核心層處理→驅動層執行→ OPP子系統→硬件（時鐘/電壓）

4.1調速器決策：interactive為例

interactive是嵌入式場景最常用的調速器，核心是“按需快速升頻，緩慢降頻”，關鍵邏輯在負載計算和頻率評估：

// drivers/cpufreq/cpufreq_interactive.c/* 核心數據結構 */structinteractive_cpu{ structupdate_util_dataupdate_util;  // 注冊到調度器的鉤子 structinteractive_policy*ipolicy;
 structirq_workirq_work;       // 中斷上下文工作  u64 last_sample_time; boolwork_in_progress;
 /* 負載計算相關 */ spinlock_tload_lock;  u64 time_in_idle;  u64 time_in_idle_timestamp;  u64 cputime_speedadj;         // 加權 CPU 時間
 /* 頻率控制 */ spinlock_ttarget_freq_lock; unsignedinttarget_freq; unsignedintfloor_freq;        // 最低允許頻率  u64 pol_floor_val_time;        // 策略級 floor 時間  u64 loc_floor_val_time;        // CPU 級 floor 時間 // ...};/* 調度器回調：每次 CPU 狀態更新時調用 */staticvoiddbs_update_util_handler(structupdate_util_data *data, u64 time,                 unsignedintflags){ structinteractive_cpu*icpu =container_of(data,structinteractive_cpu, update_util); structinteractive_policy*ipolicy = icpu->ipolicy; structinteractive_tunables*tunables = ipolicy->tunables;  u64 delta_ns, lst; /* 檢查是否可以更新 */ if(!cpufreq_this_cpu_can_update(ipolicy->policy))   return; /* 避免重復工作 */ if(icpu->work_in_progress)   return; /* 檢查采樣間隔 */  lst =READ_ONCE(icpu->last_sample_time);  delta_ns = time - lst; if((s64)delta_ns < tunables->sampling_rate * NSEC_PER_USEC)   return; /* 提交 irq_work，在中斷上下文執行 */  icpu->last_sample_time = time;  icpu->work_in_progress =true; irq_work_queue(&icpu->irq_work);}/* 實際頻率評估函數 */staticvoideval_target_freq(structinteractive_cpu *icpu){ structinteractive_tunables*tunables = icpu->ipolicy->tunables; structcpufreq_policy*policy = icpu->ipolicy->policy;  u64 cputime_speedadj, now, max_fvtime; unsignedintnew_freq, loadadjfreq, delta_time; unsignedlongflags; intcpu_load; /* 計算 CPU 負載 */ spin_lock_irqsave(&icpu->load_lock, flags);  now =update_load(icpu,smp_processor_id());  delta_time = (unsignedint)(now - icpu->cputime_speedadj_timestamp);  cputime_speedadj = icpu->cputime_speedadj; spin_unlock_irqrestore(&icpu->load_lock, flags); if(!delta_time)   return; /* 計算負載百分比 */  cpu_load = (unsignedint)(100* cputime_speedadj / delta_time) / policy->cur; spin_lock_irqsave(&icpu->target_freq_lock, flags); /* 根據負載選擇目標頻率 */  loadadjfreq = cpu_load * policy->cur;
 if(cpu_load >= tunables->go_hispeed_load) {   /* 高負載：進入 hispeed_freq */   if(policy->cur < tunables->hispeed_freq) {      new_freq = tunables->hispeed_freq;    }else{      new_freq =choose_freq(icpu, loadadjfreq);
     /* 檢查 above_hispeed_delay */     if(now - max_fvtime freq_to_above_hispeed_delay(tunables, new_freq))        new_freq =max(new_freq, tunables->hispeed_freq);    }  }else{   /* 低負載：按比例降頻 */    new_freq =choose_freq(icpu, loadadjfreq);  } /* 應用 floor 約束 */ if(new_freq < icpu->floor_freq) {   if(now - icpu->pol_floor_val_time < tunables->min_sample_time)      new_freq = icpu->floor_freq;  } /* 限制在策略范圍內 */  new_freq =max(new_freq, policy->min);  new_freq =min(new_freq, policy->max); /* 提交頻率變更 */ if(new_freq != policy->cur) {    icpu->target_freq = new_freq;   spin_lock(&speedchange_cpumask_lock);   cpumask_set_cpu(smp_processor_id(), &speedchange_cpumask);   spin_unlock(&speedchange_cpumask_lock);   wake_up_process(speedchange_task); // 喚醒內核線程執行變更  } spin_unlock_irqrestore(&icpu->target_freq_lock, flags);}

4.2頻率選擇算法：choose_freq

interactive調速器的核心算法，用二分查找思想找到滿足負載的最低頻率：

/** 選擇滿足目標負載的最低頻率* 采用二分查找思想，在頻率表中尋找最優解*/staticunsignedintchoose_freq(structinteractive_cpu *icpu,               unsignedintloadadjfreq){ structcpufreq_policy*policy = icpu->ipolicy->policy; structcpufreq_frequency_table*freq_table = policy->freq_table; unsignedintprevfreq, freqmin =0, freqmax = UINT_MAX, tl; unsignedintfreq = policy->cur; intindex; do{    prevfreq = freq;
   /* 獲取當前頻率的目標負載 */    tl =freq_to_targetload(icpu->ipolicy->tunables, freq);   /*    * 查找滿足 loadadjfreq / tl <= freq 的最低頻率    * 即：freq >= loadadjfreq / tl    */    index =cpufreq_frequency_table_target(policy, loadadjfreq / tl,                       CPUFREQ_RELATION_L);    freq = freq_table[index].frequency;   if(freq > prevfreq) {     /* 頻率上升：記錄最小值 */      freqmin = prevfreq;     if(freq >= freqmax) {       /* 超過上限，回退 */        index =cpufreq_frequency_table_target(policy, freqmax -1,                           CPUFREQ_RELATION_H);        freq = freq_table[index].frequency;       if(freq == freqmin)         break;      }    }elseif(freq < prevfreq) {     /* 頻率下降：記錄最大值 */      freqmax = prevfreq;     if(freq <= freqmin) {       /* 低于下限，回退 */        index =cpufreq_frequency_table_target(policy, freqmin +1,                           CPUFREQ_RELATION_L);        freq = freq_table[index].frequency;       if(freq == freqmax)         break;      }    }  }while(freq != prevfreq); returnfreq;}

4.3核心層頻率切換：cpufreq_core

核心層負責頻率切換的同步、通知和狀態管理，保證線程安全：

// drivers/cpufreq/cpufreq.c/* 開始頻率轉換 */voidcpufreq_freq_transition_begin(structcpufreq_policy *policy,                 structcpufreq_freqs *freqs){ /* 防止重復調用導致死鎖 */ WARN_ON(!(cpufreq_driver->flags & CPUFREQ_ASYNC_NOTIFICATION)      && current == policy->transition_task);wait: /* 等待前一次轉換完成 */ wait_event(policy->transition_wait, !policy->transition_ongoing); spin_lock(&policy->transition_lock); if(unlikely(policy->transition_ongoing)) {   spin_unlock(&policy->transition_lock);   gotowait;  }  policy->transition_ongoing =true;  policy->transition_task = current; spin_unlock(&policy->transition_lock); /* 發送 PRECHANGE 通知 */ cpufreq_notify_transition(policy, freqs, CPUFREQ_PRECHANGE);}/* 頻率轉換通知 */staticvoidcpufreq_notify_transition(structcpufreq_policy *policy,                  structcpufreq_freqs *freqs,                  unsignedintstate){ intcpu;  freqs->policy = policy;  freqs->flags = cpufreq_driver->flags; switch(state) { caseCPUFREQ_PRECHANGE:   /* 同步 old frequency */   if(policy->cur && policy->cur != freqs->old) {      freqs->old = policy->cur;    }   /* 調用 transition notifier 鏈 */   srcu_notifier_call_chain(&cpufreq_transition_notifier_list,                CPUFREQ_PRECHANGE, freqs);   /* 調整 loops_per_jiffy */   adjust_jiffies(CPUFREQ_PRECHANGE, freqs);   break; caseCPUFREQ_POSTCHANGE:   adjust_jiffies(CPUFREQ_POSTCHANGE, freqs);   /* 記錄 tracepoint */    for_each_cpu(cpu, policy->cpus)     trace_cpu_frequency(freqs->new, cpu);   /* 調用 transition notifier 鏈 */   srcu_notifier_call_chain(&cpufreq_transition_notifier_list,                CPUFREQ_POSTCHANGE, freqs);   /* 更新統計 */   cpufreq_stats_record_transition(policy, freqs->new);    policy->cur = freqs->new;  }}/* 結束頻率轉換 */voidcpufreq_freq_transition_end(structcpufreq_policy *policy,                structcpufreq_freqs *freqs,                inttransition_failed){ cpufreq_notify_post_transition(policy, freqs, transition_failed); /* 更新頻率縮放比例（用于調度器） */ arch_set_freq_scale(policy->related_cpus,            policy->cur,            policy->cpuinfo.max_freq); spin_lock(&policy->transition_lock);  policy->transition_ongoing =false;  policy->transition_task =NULL; spin_unlock(&policy->transition_lock); wake_up(&policy->transition_wait);}

4.4驅動層實現：cpufreq-dt

DT驅動是通用層，對接核心層和平臺層，核心是頻率/電壓的實際設置：

// drivers/cpufreq/cpufreq-dt.c/* 設置目標頻率 */staticintset_target(structcpufreq_policy *policy,unsignedintindex){ structprivate_data*priv = policy->driver_data; unsignedlongfreq = policy->freq_table[index].frequency;#ifdefCONFIG_ARCH_ROCKCHIP /* RK 平臺使用特殊的 OPP 設置函數 */ returnrockchip_cpufreq_opp_set_rate(priv->cpu_dev, freq *1000);#else returndev_pm_opp_set_rate(priv->cpu_dev, freq *1000);#endif}/* 驅動初始化 */staticintcpufreq_init(structcpufreq_policy *policy){ structprivate_data*priv; structdevice*cpu_dev; structclk*cpu_clk; unsignedinttransition_latency; intret;  priv =cpufreq_dt_find_data(policy->cpu); if(!priv) {   pr_err("failed to find data for cpu%dn", policy->cpu);   return-ENODEV;  }  cpu_dev = priv->cpu_dev; /* 獲取 CPU 時鐘 */  cpu_clk =clk_get(cpu_dev,NULL); if(IS_ERR(cpu_clk)) {    ret =PTR_ERR(cpu_clk);   dev_err(cpu_dev,"%s: failed to get clk: %dn", __func__, ret);   returnret;  } /* 獲取最大轉換延遲 */  transition_latency =dev_pm_opp_get_max_transition_latency(cpu_dev); if(!transition_latency)    transition_latency = CPUFREQ_ETERNAL; /* 填充 policy */ cpumask_copy(policy->cpus, priv->cpus);  policy->driver_data = priv;  policy->clk = cpu_clk;  policy->freq_table = priv->freq_table;  policy->suspend_freq =dev_pm_opp_get_suspend_opp_freq(cpu_dev) /1000;  policy->cpuinfo.transition_latency = transition_latency;  policy->dvfs_possible_from_any_cpu =true; /* 支持 boost 模式 */ if(policy_has_boost_freq(policy)) {    ret =cpufreq_enable_boost_support();   if(ret)     gotoout_clk_put;    cpufreq_dt_attr[1] = &cpufreq_freq_attr_scaling_boost_freqs;  } return0;out_clk_put: clk_put(cpu_clk); returnret;}staticstructcpufreq_driverdt_cpufreq_driver = {  .flags = CPUFREQ_NEED_INITIAL_FREQ_CHECK |      CPUFREQ_IS_COOLING_DEV,  .verify = cpufreq_generic_frequency_table_verify,  .target_index = set_target,  .get = cpufreq_generic_get,  .init = cpufreq_init,  .exit = cpufreq_exit,  .online = cpufreq_online,  .offline = cpufreq_offline,  .register_em = cpufreq_register_em_with_opp,  .name ="cpufreq-dt",  .attr = cpufreq_dt_attr,  .suspend = cpufreq_generic_suspend,};

4.5 RK平臺特殊處理：rockchip_cpufreq

RK3576的定制化邏輯，包括DVFS鎖、Read Margin、多路電壓調節器：

// drivers/cpufreq/rockchip-cpufreq.c/* RK 平臺頻率設置入口 */introckchip_cpufreq_opp_set_rate(structdevice *dev,unsignedlongtarget_freq){ structcluster_info*cluster; structdev_pm_opp*opp; structrockchip_opp_info*opp_info; structdev_pm_opp_supplysupplies[2] = {0}; unsignedlongfreq; intret =0;  cluster =rockchip_cluster_info_lookup(dev->id); if(!cluster)   return-EINVAL;  opp_info = &cluster->opp_info; /* 獲取 DVFS 鎖，防止并發修改 */ rockchip_opp_dvfs_lock(opp_info);
 /* 調用 OPP 子系統設置頻率 */  ret =dev_pm_opp_set_rate(dev, target_freq);
 if(!ret) {    cluster->rate = freq = target_freq;
   /* 查找當前 OPP，獲取電壓信息 */    opp =dev_pm_opp_find_freq_ceil(dev, &freq);   if(!IS_ERR(opp)) {     dev_pm_opp_get_supplies(opp, supplies);      cluster->volt = supplies[0].u_volt;     if(opp_info->regulator_count >1)        cluster->mem_volt = supplies[1].u_volt;     dev_pm_opp_put(opp);    }  }
 rockchip_opp_dvfs_unlock(opp_info); returnret;}EXPORT_SYMBOL_GPL(rockchip_cpufreq_opp_set_rate);/* RK3576 Read Margin 設置 */staticintrk3576_cpu_set_read_margin(structdevice *dev,                  structrockchip_opp_info *opp_info,                   u32 rm){ if(!opp_info->volt_rm_tbl)   return0; if(rm == opp_info->current_rm || rm == UINT_MAX)   return0; dev_dbg(dev,"set rm to %dn", rm);
 /* 通過 GRF 配置 Read Margin */ if(opp_info->grf) {   /* CPU0-3 核心 */   regmap_write(opp_info->grf,0x3c,0x001c0000| (rm <2));   regmap_write(opp_info->grf,0x44,0x001c0000| (rm <2));
   /* 觸發更新 */   regmap_write(opp_info->grf,0x38,0x00020002);   udelay(1);   regmap_write(opp_info->grf,0x38,0x00020000);  }
 /* CCI 接口 */ if(opp_info->cci_grf)   regmap_write(opp_info->cci_grf,0x54,0x001c0000| (rm <2));  opp_info->current_rm = rm; return0;}/* 多路 regulator 配置 */staticintcpu_opp_config_regulators(structdevice *dev,                  structdev_pm_opp *old_opp,                  structdev_pm_opp *new_opp,                  structregulator **regulators,                  unsignedintcount){ structcluster_info*cluster;  cluster =rockchip_cluster_info_lookup(dev->id); if(!cluster)   return-EINVAL; returnrockchip_opp_config_regulators(dev, old_opp, new_opp, regulators,                     count, &cluster->opp_info);}

流程圖：RK3576頻率調整完整流程

st=>start: 調度器觸發負載更新op1=>operation: interactive調速器(eval_target_freq)op2=>operation: 計算CPU負載，選擇目標頻率op3=>operation: 核心層(cpufreq_freq_transition_begin)op4=>operation: 發送PRECHANGE通知op5=>operation: 驅動層(set_target)op6=>operation: RK平臺(rockchip_cpufreq_opp_set_rate)op7=>operation: OPP子系統(dev_pm_opp_set_rate)op8=>operation: 升頻：先升壓后升頻；降頻：先降頻后降壓op9=>operation: 核心層(cpufreq_freq_transition_end)op10=>operation: 發送POSTCHANGE通知，更新統計e=>end: 頻率切換完成st->op1->op2->op3->op4->op5->op6->op7->op8->op9->op10->e

五、OPP子系統：頻率-電壓表的奧秘

OPP（Operating Performance Point）是連接軟件和硬件的關鍵，定義了“頻率-電壓”的映射關系，是DVFS的基礎。

5.1 OPP數據結構

// include/linux/pm_opp.hstructdev_pm_opp{ structlist_headnode;
 unsignedlongrate;     // 頻率 (Hz) unsignedlongu_volt;    // 電壓 (uV) unsignedlongu_volt_min;  // 最小電壓 unsignedlongu_volt_max;  // 最大電壓
 structdevice_opp*dev_opp; // 所屬設備
 /* 支持的條件 */ unsignedlongsupported_hw; // 硬件版本掩碼
 /* 供電信息 */ structopp_supply*supplies; unsignedintsupply_count;
 /* 自定義數據 */ void*priv;};structdevice_opp{ structlist_headnode; structdevice*dev; structsrcu_notifier_headsrcu_head; structlist_headopp_list;
 structclk*clk; structregulator**regulators; unsignedintregulator_count;
 structopp_table*opp_table;};

5.2 Device Tree OPP定義

RK3576的OPP表在DTS中定義，不同芯片版本支持不同頻率：

// arch/arm64/boot/dts/rockchip/rk3576.dtsicpu0_opp_table:opp-table-0{  compatible ="operating-points-v2";  opp-shared;
 /* 408 MHz */  opp-408000000{    opp-hz =/bits/64<408000000>;    opp-microvolt = <800000>;    clock-latency-ns = <40000>;  };
 /* 600 MHz */  opp-600000000{    opp-hz =/bits/64<600000000>;    opp-microvolt = <825000>;  };
 /* 816 MHz */  opp-816000000{    opp-hz =/bits/64<816000000>;    opp-microvolt = <850000>;  };
 /* 1.2 GHz */  opp-1200000000{    opp-hz =/bits/64<1200000000>;    opp-microvolt = <925000>;  };
 /* 1.608 GHz - 僅支持特定芯片版本 */  opp-1608000000{    opp-hz =/bits/64<1608000000>;    opp-microvolt = <1100000>;    opp-supported-hw = <0x10x1>; //bin=0, volt_sel=0  };
 /* 1.8 GHz - 更高規格芯片 */  opp-1800000000{    opp-hz =/bits/64<1800000000>;    opp-microvolt = <1175000>;    opp-supported-hw = <0x10x3>; //bin=0, volt_sel=0,1,2  };};

5.3 OPP查找與設置流程

OPP子系統的核心函數，負責頻率/電壓的實際設置：

// drivers/opp/core.c/*** dev_pm_opp_set_rate() - 設置設備到指定頻率* @dev: 設備* @target_freq: 目標頻率 (Hz)** 1. 查找匹配的 OPP* 2. 設置 regulator 電壓* 3. 設置時鐘頻率*/intdev_pm_opp_set_rate(structdevice *dev,unsignedlongtarget_freq){ structdevice_opp*dev_opp; structdev_pm_opp*opp; structclk*clk; unsignedlongold_freq, new_freq; intret;  dev_opp = _find_device_opp(dev); if(IS_ERR(dev_opp))   returnPTR_ERR(dev_opp);  clk = dev_opp->clk;  old_freq =clk_get_rate(clk); /* 查找目標頻率對應的 OPP */  opp = _find_freq_ceil(dev_opp, &target_freq); if(IS_ERR(opp)) {    ret =PTR_ERR(opp);   gotoput_opp;  }  new_freq = opp->rate; /* 如果頻率相同，只更新電壓 */ if(new_freq == old_freq) {    ret = _set_opp_voltage(dev, dev_opp, opp);   gotoput_opp;  } /* 升頻：先升壓，后升頻 */ if(new_freq > old_freq) {    ret = _set_opp_voltage(dev, dev_opp, opp);   if(ret)     gotoput_opp;
    ret =clk_set_rate(clk, new_freq);   if(ret) {     /* 回滾電壓 */      _set_opp_voltage(dev, dev_opp, _find_freq_floor(dev_opp, &old_freq));    }  }else{   /* 降頻：先降頻，后降壓 */    ret =clk_set_rate(clk, new_freq);   if(ret)     gotoput_opp;
    _set_opp_voltage(dev, dev_opp, opp);  }put_opp: dev_pm_opp_put(opp); returnret;}

流程圖：OPP頻率-電壓設置流程

st=>start: 調用dev_pm_opp_set_rateop1=>operation: 查找設備對應的device_oppop2=>operation: 獲取當前時鐘頻率(old_freq)op3=>operation: 查找目標頻率的OPP(ceil)op4=>operation: 判斷new_freq == old_freq?op5=>operation: 僅更新電壓(_set_opp_voltage)op6=>operation: new_freq > old_freq?op7=>operation: 先升壓，后升頻op8=>operation: 升頻失敗，回滾電壓op9=>operation: 先降頻，后降壓e=>end: 返回設置結果st->op1->op2->op3->op4op4(yes)->op5->eop4(no)->op6op6(yes)->op7->eop7(no)->op8->eop6(no)->op9->e

六、通知鏈機制：頻率變更的廣播系統

cpufreq的通知鏈?zhǔn)?/span>“事件廣播”機制，允許其他子系統（如溫控、功耗管理）監聽頻率變更事件，是內核模塊化設計的典型體現。

6.1兩種通知鏈

// drivers/cpufreq/cpufreq.c/* 策略通知鏈：策略創建/銷毀時調用 */staticBLOCKING_NOTIFIER_HEAD(cpufreq_policy_notifier_list);/* 轉換通知鏈：頻率變更前后調用 */SRCU_NOTIFIER_HEAD_STATIC(cpufreq_transition_notifier_list);

6.2 RK平臺的通知器注冊

RK3576通過通知鏈實現“頻率-空閑狀態”聯動、總線QoS約束：

// drivers/cpufreq/rockchip-cpufreq.c/* 策略通知器：處理監控注冊和總線 QoS */staticintrockchip_cpufreq_notifier(structnotifier_block *nb,                  unsignedlongevent,void*data){ structcpufreq_policy *policy = data; structcluster_info *cluster;  cluster = rockchip_cluster_info_lookup(policy->cpu); if(!cluster)   returnNOTIFY_BAD; switch(event) { caseCPUFREQ_CREATE_POLICY:   /* 注冊系統監控 */   if(rockchip_cpufreq_add_monitor(cluster, policy))     returnNOTIFY_BAD;
   /* 添加總線頻率 QoS 約束 */   if(rockchip_cpufreq_add_bus_qos_req(cluster, policy))     returnNOTIFY_BAD;   break; caseCPUFREQ_REMOVE_POLICY:    rockchip_cpufreq_remove_monitor(cluster);    rockchip_cpufreq_remove_bus_qos(cluster);   break;  } returnNOTIFY_OK;}/* 轉換通知器：處理空閑狀態 */staticintrockchip_cpufreq_transition_notifier(structnotifier_block *nb,                        unsignedlongevent,void*data){ structcpufreq_freqs *freqs = data; structcpufreq_policy *policy = freqs->policy; structcluster_info *cluster;  cluster = rockchip_cluster_info_lookup(policy->cpu); if(!cluster)   returnNOTIFY_BAD; switch(event) { caseCPUFREQ_PRECHANGE:   /* 高頻時禁用深層空閑狀態 */   if(cluster->idle_threshold_freq &&      freqs->new>= cluster->idle_threshold_freq &&      !cluster->is_idle_disabled) {      rockchip_cpufreq_idle_state_disable(policy->cpus,1,true);      cluster->is_idle_disabled =true;    }   break; caseCPUFREQ_POSTCHANGE:   /* 低頻時重新啟用空閑狀態 */   if(cluster->idle_threshold_freq &&      freqs->new< cluster->idle_threshold_freq &&      cluster->is_idle_disabled) {      rockchip_cpufreq_idle_state_disable(policy->cpus,1,false);      cluster->is_idle_disabled =false;    }
   /* 更新總線頻率請求 */    rockchip_cpufreq_update_bus_req(cluster, freqs->new);   break;  } returnNOTIFY_OK;}

6.3使用場景示例

溫控驅動通過通知鏈監聽頻率變更，更新熱模型：

/* 溫度管理驅動注冊通知器 */staticintthermal_cpufreq_notifier(structnotifier_block *nb,                  unsignedlongevent,void*data){ structcpufreq_freqs *freqs = data;
 if(event== CPUFREQ_POSTCHANGE) {   /* 頻率變更后更新熱模型 */    update_thermal_model(freqs->new);  }
 returnNOTIFY_OK;}staticstructnotifier_block thermal_nb = {  .notifier_call = thermal_cpufreq_notifier,};/* 注冊 */cpufreq_register_notifier(&thermal_nb, CPUFREQ_TRANSITION_NOTIFIER);

七、統計與調試：洞察系統行為

掌握調試技巧，才能快速定位頻率調節的問題，cpufreq提供了豐富的統計和調試接口。

7.1統計模塊實現

// drivers/cpufreq/cpufreq_stats.cstructcpufreq_stats{ unsignedinttotal_trans;     // 總切換次數 unsignedlonglonglast_time;   // 上次更新時間 unsignedintmax_state;      // 最大狀態數 unsignedintstate_num;      // 實際狀態數 unsignedintlast_index;      // 當前狀態索引  u64 *time_in_state;        // 各頻率駐留時間 unsignedint*freq_table;     // 頻率表 unsignedint*trans_table;     // 切換矩陣};/* 記錄一次頻率切換 */voidcpufreq_stats_record_transition(structcpufreq_policy *policy,                  unsignedintnew_freq){ structcpufreq_stats*stats = policy->stats; intold_index, new_index; if(!stats)   return;  old_index = stats->last_index;  new_index =freq_table_get_index(stats, new_freq); if(old_index ==-1|| new_index ==-1|| old_index == new_index)   return; /* 更新駐留時間 */ cpufreq_stats_update(stats, stats->last_time);  stats->last_index = new_index;  stats->trans_table[old_index * stats->max_state + new_index]++;  stats->total_trans++;}

7.2調試技巧

# 1. 查看當前頻率和策略cat/sys/devices/system/cpu/cpu0/cpufreq/scaling_cur_freqcat/sys/devices/system/cpu/cpu0/cpufreq/scaling_governorcat/sys/devices/system/cpu/cpu0/cpufreq/scaling_min_freqcat/sys/devices/system/cpu/cpu0/cpufreq/scaling_max_freq# 2. 查看頻率駐留時間統計cat/sys/devices/system/cpu/cpu0/cpufreq/stats/time_in_state# 輸出格式: 頻率(Hz) 時間(時鐘周期)# 408000 1234567# 600000 2345678# ...# 3. 查看頻率切換矩陣cat/sys/devices/system/cpu/cpu0/cpufreq/stats/trans_table# 顯示從每個頻率切換到其他頻率的次數# 4. 查看可用頻率和調速器cat/sys/devices/system/cpu/cpu0/cpufreq/scaling_available_frequenciescat/sys/devices/system/cpu/cpu0/cpufreq/scaling_available_governors# 5. 動態切換調速器echouserspace > /sys/devices/system/cpu/cpu0/cpufreq/scaling_governorecho1200000 > /sys/devices/system/cpu/cpu0/cpufreq/scaling_setspeed# 6. 內核日志調試dmesg | grep -i cpufreqdmesg | grep -i"rk3576|rockchip"# 7. 使用 tracepointcd/sys/kernel/debug/tracingecho1 > events/cpufreq/enablecattrace

八、實戰：自定義調速器開發

掌握自定義調速器的開發，才能適配特定場景的性能/功耗需求。

8.1最小調速器框架

#include#includestaticintmygov_target(structcpufreq_policy *policy,unsignedinttarget_freq,           unsignedintrelation){ /* 簡單的頻率設置 */ return__cpufreq_driver_target(policy, target_freq, relation);}staticintmygov_init(structcpufreq_policy *policy){ /* 初始化 */ return0;}staticvoidmygov_exit(structcpufreq_policy *policy){ /* 清理 */}staticstructcpufreq_governormy_governor = {  .name ="mygov",  .target = mygov_target,  .init = mygov_init,  .exit = mygov_exit,  .owner = THIS_MODULE,};staticint__initmygov_init_module(void){ returncpufreq_register_governor(&my_governor);}staticvoid__exitmygov_exit_module(void){ cpufreq_unregister_governor(&my_governor);}module_init(mygov_init_module);module_exit(mygov_exit_module);MODULE_LICENSE("GPL");

8.2基于負載的調速器

staticvoidmygov_update(structcpufreq_policy *policy){ unsignedintload =calculate_cpu_load(policy); unsignedintnew_freq; if(load >80) {   /* 高負載：升頻到最大 */    new_freq = policy->max;  }elseif(load 20) {   /* 低負載：降頻到最小 */    new_freq = policy->min;  }else{   /* 中等負載：線性插值 */    new_freq = policy->min + load * (policy->max - policy->min) /100;  }  __cpufreq_driver_target(policy, new_freq, CPUFREQ_RELATION_H);}

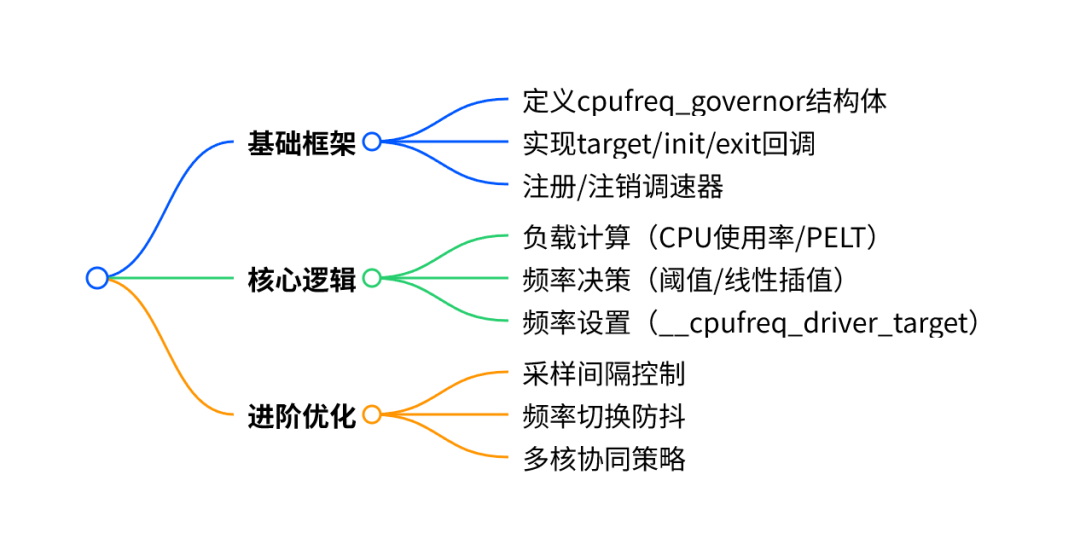

腦圖：自定義調速器開發

九、性能優化實戰

針對實際開發中的痛點，優化頻率切換延遲、負載計算精度。

9.1減少頻率切換延遲

/* 1. 使用 fast frequency switching */staticstructcpufreq_drivermy_driver={  .flags=CPUFREQ_FAST_SWITCHING,  .fast_switch=my_fast_switch, // 原子上下文切換};/* 2. 減少 transition latency */// 在 OPP 表中設置較小的 clock-latency-nsopp-1200000000{  opp-hz=/bits/64<1200000000>;  clock-latency-ns=<10000>; // 10us，而不是 40us};

9.2優化負載計算

/* 使用 PELT 信號代替 idle time */#includestaticunsignedintget_pelt_load(structcpufreq_policy *policy){ unsignedintcpu = policy->cpu; structrq*rq =cpu_rq(cpu);
 /* PELT (Per-Entity Load Tracking) 是調度器內部的負載跟蹤機制 */ returnrq->cfs.avg.util_avg; // 0 ~ 1024}

腦圖：性能優化實戰

十、總結與延伸

10.1核心要點回顧

1.分層架構：governor → core → driver → OPP → clk/regulator

2.線程安全：transition_lock、DVFS lock、notifier chain

3.硬件抽象：OPP表統一頻率-電壓關系

4.平臺特性：RK3576的Read Margin、多路regulator

10.2延伸閱讀

?Documentation/cpu-freq/-內核文檔

?drivers/opp/- OPP子系統實現

?drivers/cpufreq/cpufreq_schedutil.c-最新schedutil調速器

?include/linux/cpufreq.h-完整API定義

10.3調試checklist

□dmesg | grep cpufreq查看初始化日志

□cat scaling_available_frequencies確認頻率表

□cat time_in_state確認頻率切換正常

□trace-cmd record -e cpufreq抓取切換事件

□檢查regulator是否支持動態電壓調節

寫在最后

cpufreq是Linux內核中最接近硬件的子系統之一，理解它不僅能幫你優化系統性能，更能深入理解內核的設備模型、電源管理和并發控制機制。
